AI Data Center Cabling is hitting a massive wall in 2026. GPU racks are pulling 100kW, and heat is the enemy. If your trays aren't right, the hardware throttles. This guide helps you install a system that actually works. We focus on airflow, signal safety, and speed.

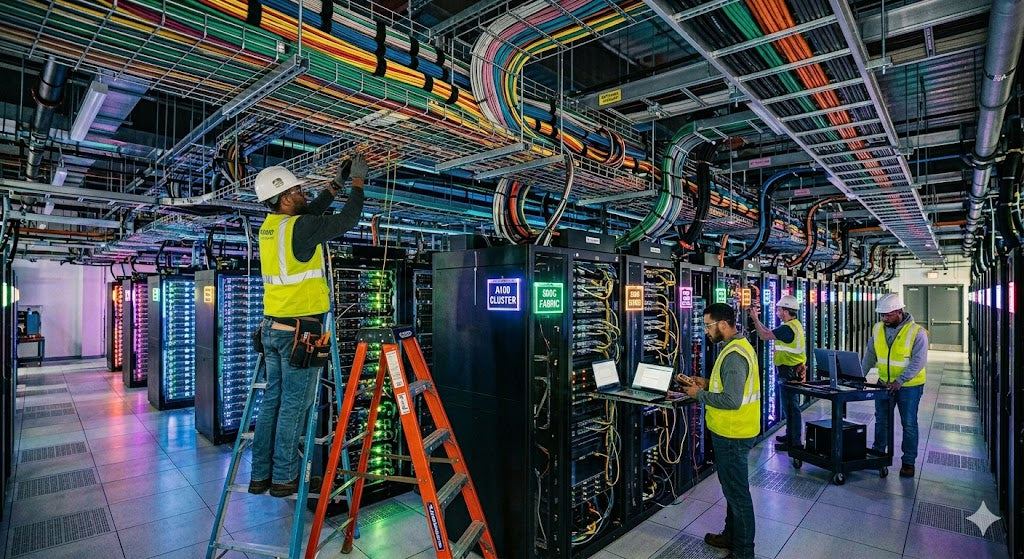

1. Stop Airflow Choke in AI Data Center Cable Setups
Cabling inside of an AI data center can act like a wall against your cooling. Solid-bottom trays create "dead zones" behind the rack. These spots trap heat and bake your transceivers. This causes the system to slow down instantly.
Use High-Aperture Ladder Trays
Switch to ladder trays or wire mesh with a large open area. This keeps the air moving through the aisle. Never fill a tray past 35% capacity. Leaving room for air is better than a "neat" overstuffed bundle. Your cooling bill and your GPUs will thank you.
2. 1.6T Signals and AI Data Center Cabling
Today’s data center setups are now capable of reaching blazing-fast 1.6T (terabits per second) speeds. At these ultra-high speeds, network cables become highly sensitive to minor pressure or distortion. Even a single kink or bend in the cable can compromise the integrity of a high-speed link. It can even destroy the connection entirely. This potentially leads to costly downtime or data loss. One of the most important risks to consider is the 'crush weight' that cables may experience. This risk increases especially when cables are placed in deep cable trays. Excessive weight or improper cable management can physically damage the cables. This further increases the risk of link failure in a 1.6T environment.
Protect Your Fiber Runs
For every overhead cable run, always use rigid-wall fiber runners. They provide the best protection and support for your fiber optic cables. When planning your cable management, ensure that all your 'waterfall' exits feature a wide radius bend. This helps maintain proper cable curvature and prevents fiber damage or signal degradation. Avoid placing heavy copper cables on top of delicate fiber optic lines. Their weight can crush the fibers and compromise network performance. Additionally, install vertical dividers within your cable trays or pathways to keep power and data cables separated. This setup reduces the risk of signal loss due to electromagnetic interference. It also safeguards your cables against physical damage, ensuring a more reliable and efficient network infrastructure.
3. The Power Load in AI Data Center Cabling
Heavy DC power is the backbone of AI Data Centers. These cables are thick, heavy, and they get hot. You need a tray that won't sag or trap heat.
Why Pros Choose Aluminum Ladders
Aluminum ladder trays are the 2026 job-site standard. Aluminum stays cooler than steel under heavy loads. It is also lighter for your crew to hang. Properly grounded aluminum also blocks electrical noise. This keeps your data lines clean and fast.
4. Skip the Rework: AI Data Center Cable BIM
Don't guess on your Data Center Cabling layout. Most 2026 builds require LOD 400 Revit models. These digital twins show you "clashes" before you drill. You won't run into a pipe you didn't see.
SkyHigh-Supply offers full BIM assets for our hardware. You can simulate the build in 3D today. This saves your crew hours of field-fixing mistakes.
The "Installer’s Cheat Sheet" (2026 Standards)
| Problem | The 2026 Fix | Hardware to Grab |
| Heat Buildup | Open Airflow | High-Aperture Mesh |
| Signal Lag | No Tight Bends | Fiber Waterfalls |
| Heavy DC Power | Heat Dissipation | Aluminum Ladders |
| Tight Access | 12" Headroom | Low-Profile Mounts |
Final Word on Data Center Cabling
A bad tray setup leads to a maintenance nightmare. Good Data Center Cabling is invisible and efficient. It stays cool and protects your high-speed glass. Build it right the first time to avoid the 2 a.m. service call.
