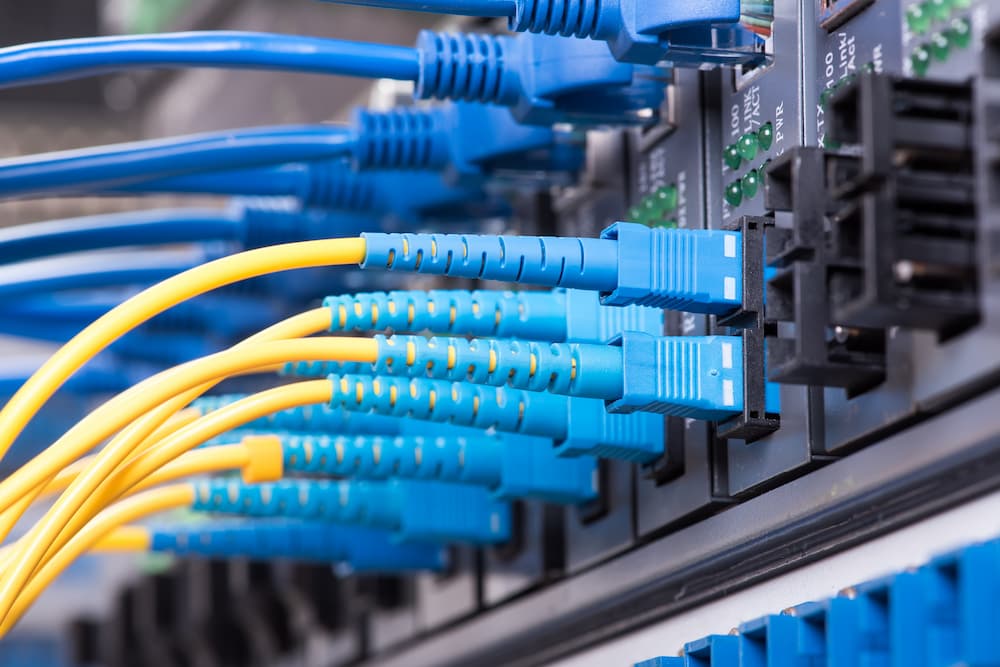

All fiber patch cable types are classified into five primary categories. Fiber Mode, Connector Type, Polish Type, Strand Count, and Jacket Fire Rating.
Understanding the different fiber optic patch cable types is critical for network engineers, data center technicians, and telecommunications contractors. Using the incorrect patch cable type leads to severe optical attenuation, hardware incompatibility, or physical connector damage.
Frequently Asked Questions (FAQs)
What are the most common fiber optic patch cable types?
LC-to-LC Duplex Single-Mode OS2 (used in telecom and long-range networking).
LC-to-LC Duplex Multi-Mode OM3/OM4 (used in data center server racks).
Can I mix OM3 and OM4 patch cables in the same link?
Yes, OM3 and OM4 both feature 50/125 µm core diameters and are optically compatible. However, the overall channel performance will be limited to the lowest rated standard (OM3 distances).
How do I know if my fiber cable is APC or UPC?
Check the color of the connector housing. Blue indicates UPC (Ultra Physical Contact), while Green indicates APC (Angled Physical Contact).
1. Fiber Optic Patch Cable Types by Optical Mode (Single-Mode vs. Multi-Mode)
The fundamental classification of fiber patch cords is based on core size and transmission mode
| Fiber Type | Core / Cladding Diameter | Light Source | Max Distance | Standard Jacket Color | Typical Applications |
| OS1 (Single-Mode) | 9/125 µm | Laser | Up to 10 km | Yellow | Indoor office backbones, campus networks |
| OS2 (Single-Mode) | 9/125 µm | Laser | Up to 40 km+ | Yellow | Outdoor/underground backhauls, 5G cell sites |
| OM1 (Multi-Mode) | 62.5/125 µm | LED | Up to 300 m (1 Gbps) | Orange | Legacy LAN infrastructure (Deprecated) |
| OM2 (Multi-Mode) | 50/125 µm | LED | Up to 82 m (10 Gbps) | Orange | Legacy enterprise networks |
| OM3 (Multi-Mode) | 50/125 µm | VCSEL | Up to 300 m (10 Gbps) | Aqua | 10G/40G Data Center Racks |
| OM4 (Multi-Mode) | 50/125 µm | VCSEL | Up to 550 m (10 Gbps) | Aqua / Erika Violet | High-Speed 40G/100G Enterprise Networks |
| OM5 (Multi-Mode) | 50/125 µm | VCSEL (SWDM) | Up to 440 m (100G) | Lime Green | SWDM Data Centers, 100G-400G links |
Single-Mode Patch Cables (OS1 / OS2)
Single-mode patch cables feature a small 9-micron glass core designed to transmit a single ray of laser light. They offer virtually unlimited bandwidth over long distances with zero modal dispersion.
Multi-Mode Patch Cables (OM1 through OM5)
Multi-mode patch cables feature a larger core (50µm or 62.5µm). This allows multiple light rays to bounce down the core simultaneously. While highly cost-effective for short distances, modal dispersion limits their transmission range.
2. Fiber Optic Patch Cable Types by Connector End-Face
Optical connectors allow quick insertion into transceivers, switches, and patch panels.
Small Form-Factor Connectors
- LC (Lucent Connector): Uses a 1.25mm ceramic ferrule with a push-pull latch design. It is the dominant connector type for high-density network switches and SFP/SFP+ optical transceivers.
Standard Legacy Connectors
- SC (Subscriber Connector): Features a 2.5mm ferrule with a locking push-pull housing. Widely used in telecom networks, FTTH drops, and media converters.
- ST (Straight Tip): Features a 2.5mm ferrule with a spring-loaded bayonet twist-lock interface. Predominantly used in legacy campus and industrial installations.
- FC (Ferrule Connector): Uses a threaded screw-on housing with a 2.5mm ferrule, ideal for high-vibration environments.
High-Density Parallel Connectors
- MPO / MTP Connectors: Houses 8, 12, or 24 fibers within a single rectangular ferrule. Essential for 40G (QSFP+), 100G (QSFP28), and 400G data center migration.
3. Fiber Optic Patch Cables by Ferrule Polish (UPC vs. APC)
The polish type determines how much light reflects back toward the laser source (Optical Return Loss).
- UPC (Ultra Physical Contact):Color: BlueDesign: Flat, rounded ceramic end-face finish.Return Loss: $\approx -50\text{ dB}$Use Case: Standard Enterprise LAN, Data Storage, Ethernet switches.
- APC (Angled Physical Contact):Color: GreenDesign: End-face polished at an exact 8-degree angle to bounce reflected light into the cable cladding.Return Loss: $\le -60\text{ dB}$Use Case: FTTx, Telecom Backhauls, RF/CATV networks, cellular towers.
⚠️ Warning: Never mate an APC (Green) connector with a UPC (Blue) connector. The physical collision between the flat and angled ferrules will permanently damage both connectors.
4. Fiber Optic Patch Cable Types by Cable Construction & Jacket Rating
Construction Types
- Simplex: Single fiber strand within a protective jacket. Used for one-way data transmission or BiDi transceivers.
- Duplex: Two strands arranged in a zip-cord style (one Transmit [TX], one Receive [RX]). This is the standard jumper format for networking hardware.
- Armored Patch Cables: Enased in an internal stainless-steel helical tape beneath the outer jacket. Protects against rodent bites, crushing forces, and harsh industrial environments.
- Bend-Insensitive Fiber (BIF): Engineered with a lower refractive index trench surrounding the core to prevent signal loss during tight bends (down to 7.5mm bend radius).
Jacket Fire Ratings
- OFNP (Plenum Rated): Highest fire safety rating. Flame-retardant material emitting low smoke for environmental air ducts and drop ceilings.
- OFNR (Riser Rated): Designed for vertical riser shafts between building floors. Prevents flame spread across building levels.
- LSZH (Low Smoke Zero Halogen): Thermoplastic material that emits zero toxic halogen gases when exposed to fire.
