Commscope L4HM-D Connector (LDF4-50 4.3-10)
Regular price
$20.00
Sale price
$20.00
Regular price
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
In stock (62 units), ready to be shipped
Couldn't load pickup availability

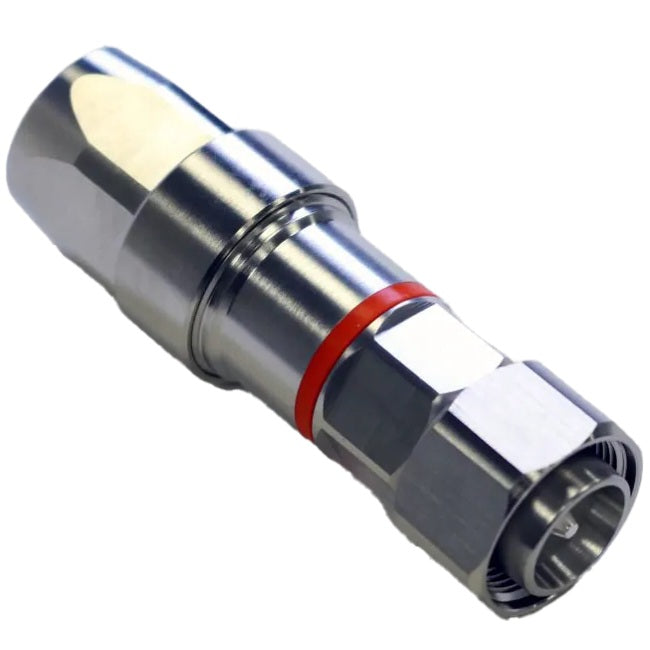

CommScope L4HM-D
The CommScope L4HM-D is a premium, high-performance 4.3-10 Male RF connector optimized for 1/2-inch corrugated coaxial cables. Engineered for modern telecommunications networks, it delivers exceptional signal integrity, low PIM (Passive Intermodulation), and superior weather resistance.
1. Electrical Performance
- Impedance: 50 Ohms (nominal)
- Operating Frequency: 0 to 8800 MHz (covers all 4G/5G cellular bands)
- Return Loss / VSWR: ≤ 1.11:1 (0–3000 MHz) | ≤ 1.14:1 (3000–6000 MHz)
- 3rd Order PIM (Passive Intermodulation): -166 dBc minimum @ 2 x 20W
- Peak Power Rating: 22.50 kW maximum
- Shielding Effectiveness: -110 dB
2. Mechanical & Material Specifications
- Body Style: Straight
- Inner Contact Plating: Silver (provides optimal conductivity)
- Outer Contact / Body Plating: Trimetal (offers superior corrosion resistance)
- Inner Contact Attachment: Captivated (mechanical, solder-free)
- Outer Contact Attachment: Clamp mechanism
- Coupling Nut Proof Torque: 15.00 N-m | 11.06 ft-lb
3. Environmental Durability
- Ingress Protection (IP Rating): IP68 (completely dust-tight and water-immersion proof when mated)
- Corrosion Resistance: Salt spray testing meets severe industrial telecom standards
- Operating Temperature Range: -55 °C to +85 °C (-67 °F to +185 °F)
4. Cable Compatibility
- LDF4-50
