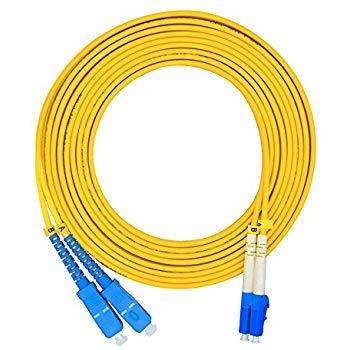

SC-LC Duplex Single Mode Yellow PVC Fiber Jumper (Various Sizes)

SC-LC Duplex Single Mode Yellow PVC Fiber Jumper

Engineered for high-performance single mode fiber optic networks, this SC-LC Duplex patch cable delivers reliable, low-loss connectivity for data centers, telecom closets, and enterprise infrastructure. The yellow PVC jacket identifies OS2 single mode fiber at a glance, making cable management fast and error-free.

Key Features

• Connector Types: SC (male) to LC (male), duplex configuration
• Fiber Type: OS2 Single Mode, 9/125µm
• Cable Rating: OFNR Riser Rated — suitable for vertical runs between floors
• Jacket: Yellow PVC, 2.0mm diameter per strand
• Available Lengths: 3M, 5M, 10M, 15M, 20M
• Insertion Loss: ≤ 0.3 dB typical
• Return Loss: ≥ 50 dB (UPC polish)
• Operating Temperature: -20°C to +70°C
• Bend Radius: ≥ 30mm

Applications

• Data center fiber patch panels and switch uplinks
• Telecom and ISP central office cross-connects
• Enterprise LAN backbone and riser runs
• CATV, FTTH, and WDM network deployments

Why Single Mode?

Single mode fiber supports transmission distances up to 10km and beyond — far exceeding multimode limits — making it the standard choice for long-haul and inter-building runs. The OS2 specification ensures compatibility with modern transceivers operating at 1310nm and 1550nm wavelengths.

Select your required length from the variant options above. All cables are factory-terminated and 100% tested prior to shipment.
